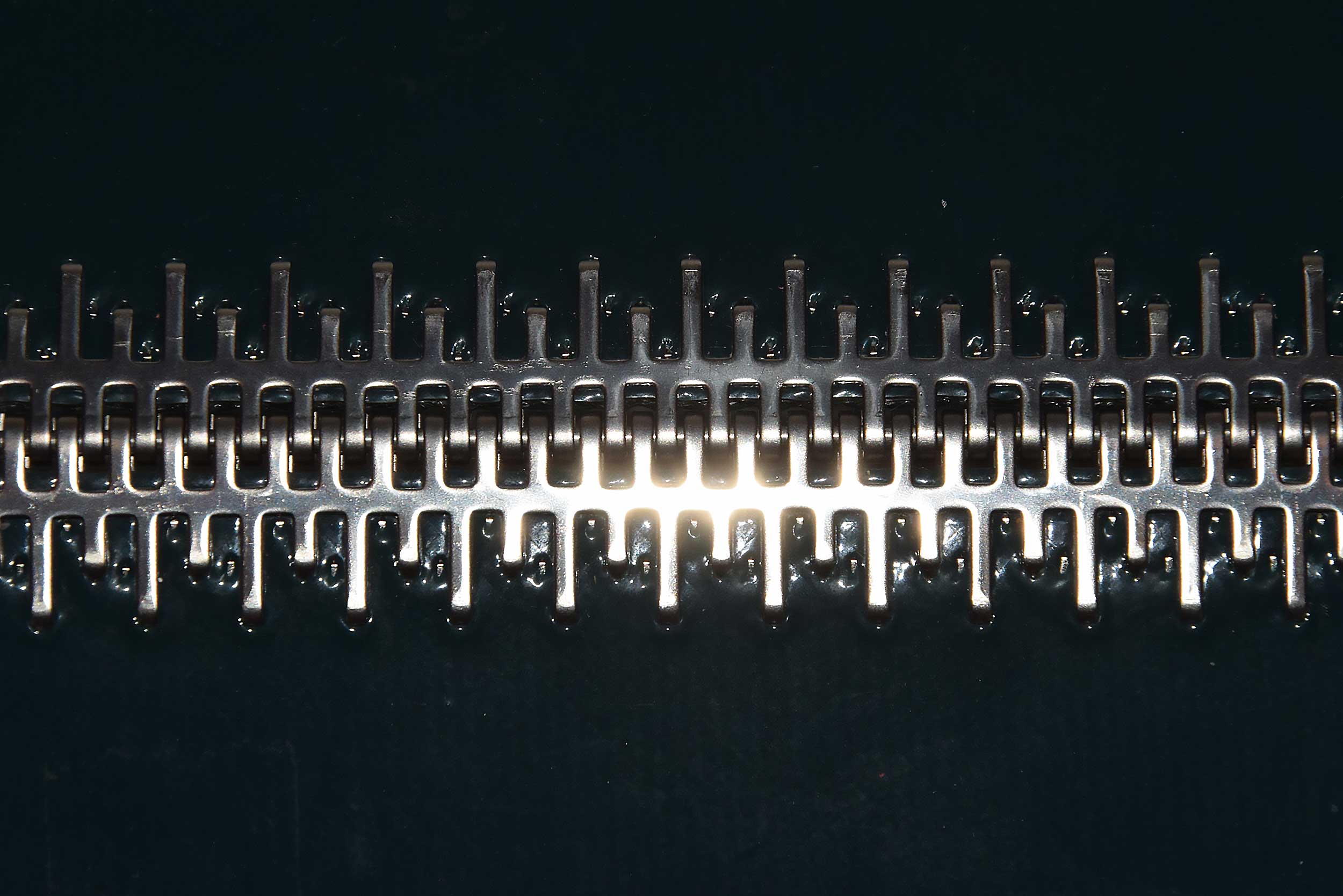

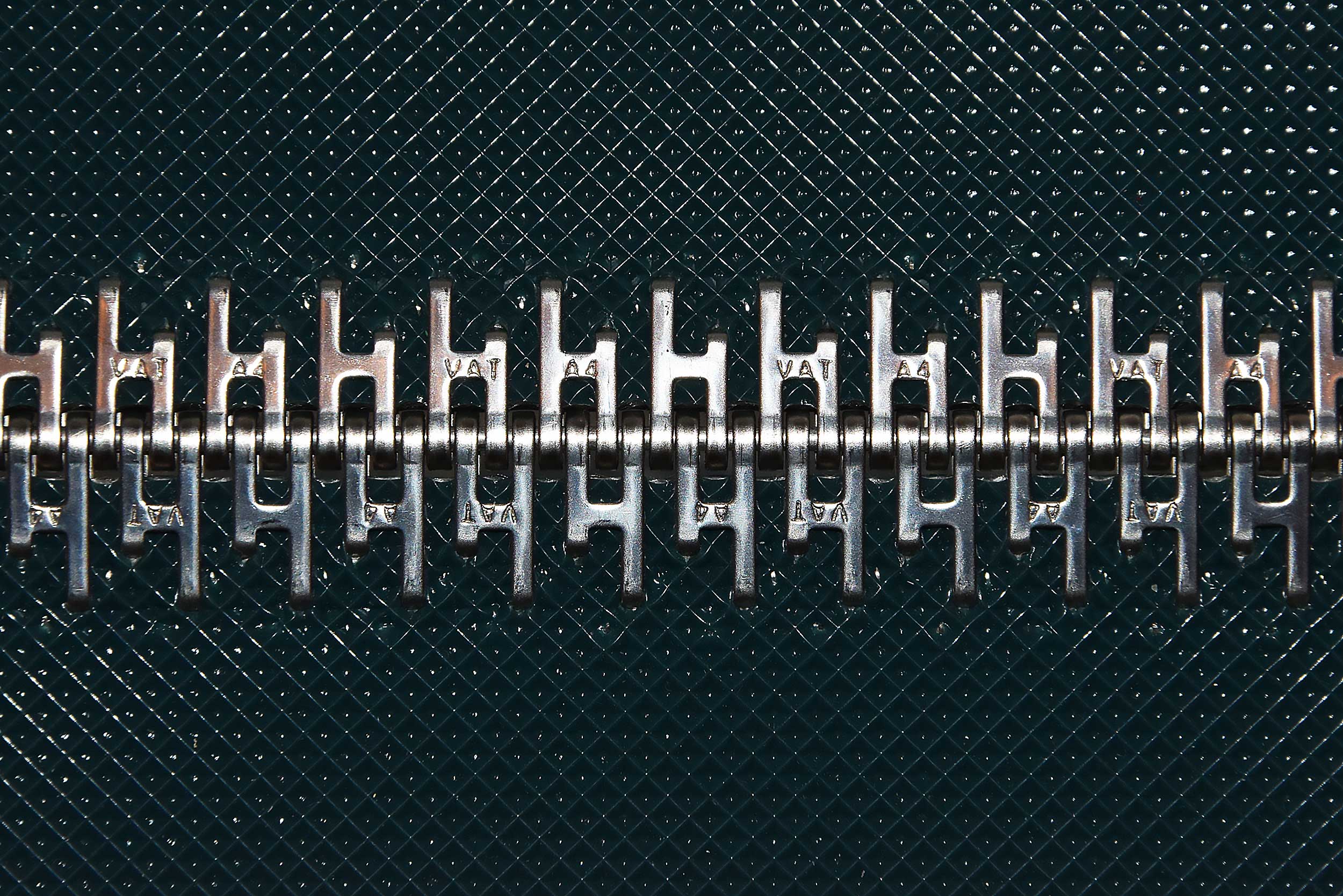

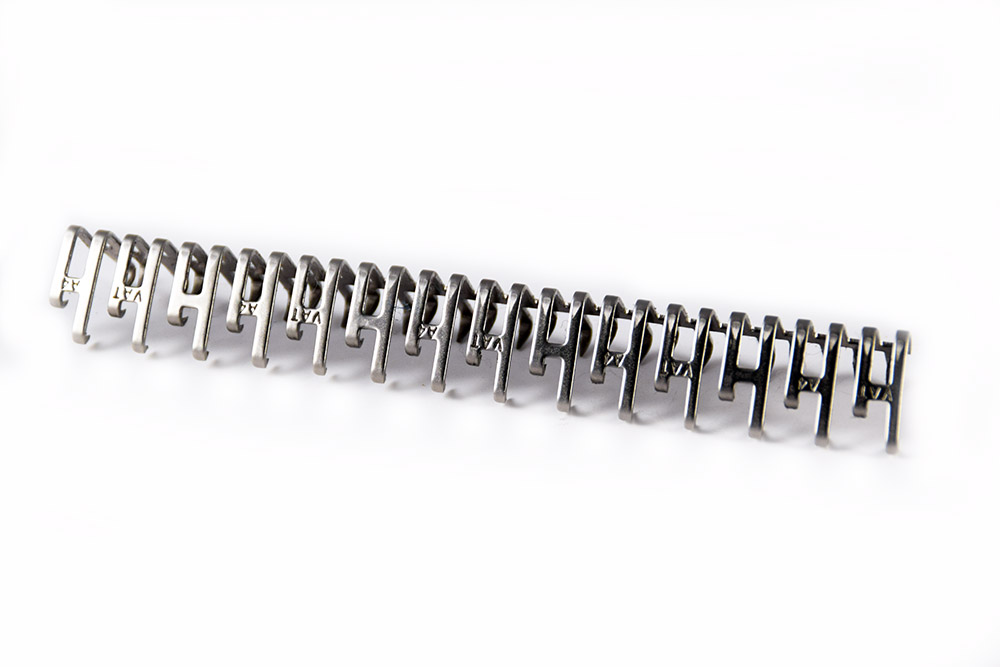

Type A4 Tooth Hinged Fasteners are to be applied to belts with thicknesses ranging between 2.5and 3.8 mm and for conveyors having minimum pulley diameter of 60mm.
The standard supply consists in boxes containing 5 double hinged fasteners (10 pieces) with connecting pins 1.8 x 1000, 1200 or 1500 mm diameter.
Product

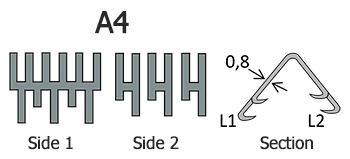

Technical Data
| Technical data | A4 |  |
|---|---|---|
| Conveyor Belt Thickness (mm) | 2,5 - 3,8 | |
| Minimum Pulley Diameter (mm) | 60 | |
| Steel Thickness (mm) | 0,8 | |
| Stainless Steel Hinge Pin Diameter (mm) | 1,6 - 2,0 | |
| Maximun recommended Working load | 2 Plies Belt | To x 1,3 |
| 3 Plies Belt | To x 1,2 | |
| To = Tensile Strength for elongation 1% | ||
 |
Supply information
| CODE | CONTENT OF 1 BOX | |
| A4 Inox H - 5 X 1.0 | 10 x 1.00 0 mm Type A4 Fasteners | |
| 5 stainless steel Ø 1.8 X 1.038 mm | ||
| A4 Inox H - 5 X 1.2 | 10 x 1.20 0 mm Type A4 Fasteners | |
| 5 stainless steel Ø 1.8 X 1.220 mm | ||
| A4 Inox H - 5 X 1.5 | 10 x 1.50 0 mm Type A4 Fasteners | |
| 5stainless steel Ø 1.8 X 1.520 mm | ||
